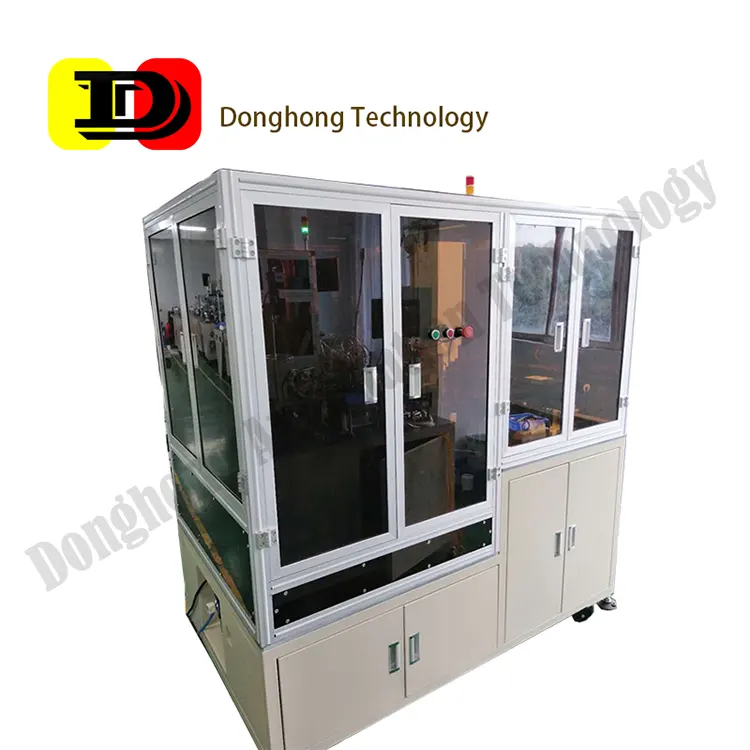

Multi-Axis Automatic Terminal Common Mode Inductor Assembly Machine

Performance

● Multi-Axis Automatic Terminal Common Inductor Assembly Machine has a stable production capacity of 3,000 PCS/H per device. One person can operate 10 machines simultaneously, reducing labor costs by 80% and saving more than 400,000 yuan in annual labor costs.

● The seamless connection of the whole process increases production efficiency by 500% compared with traditional equipment.

● The micro metering dispensing technology has a dispensing accuracy of ±0.005g. The heating function maintains the fluidity of the glue, eliminating defects such as wire drawing and glue overflow.

● Multi-Axis Automatic Terminal Common Inductor Assembly Machine scans the glue volume in real time and feeds it back to the dispensing system to automatically correct errors. The glue volume detection accuracy reaches ±0.01MM. The assembly link realizes closed-loop control through pressure sensors, with a pressure maintaining accuracy of ±2%. The self-aligning structure ensures the error between the cover plate and the fitting.

● Multi-Axis Automatic Terminal Common Inductor Assembly Machine is equipped with a built-in Ethernet communication module to upload data in real time and support remote services.

Highlights

● The deep integration of the three turntable divider and bus control realizes parallel operations of "feeding - assembly - inspection", shortening the beat by 40% compared with similar equipment, and winning the China Intelligent Manufacturing Innovation Award.

● The micro metering dispensing technology with ±0.005g dispensing accuracy has reached the international leading level.

Product parameters
