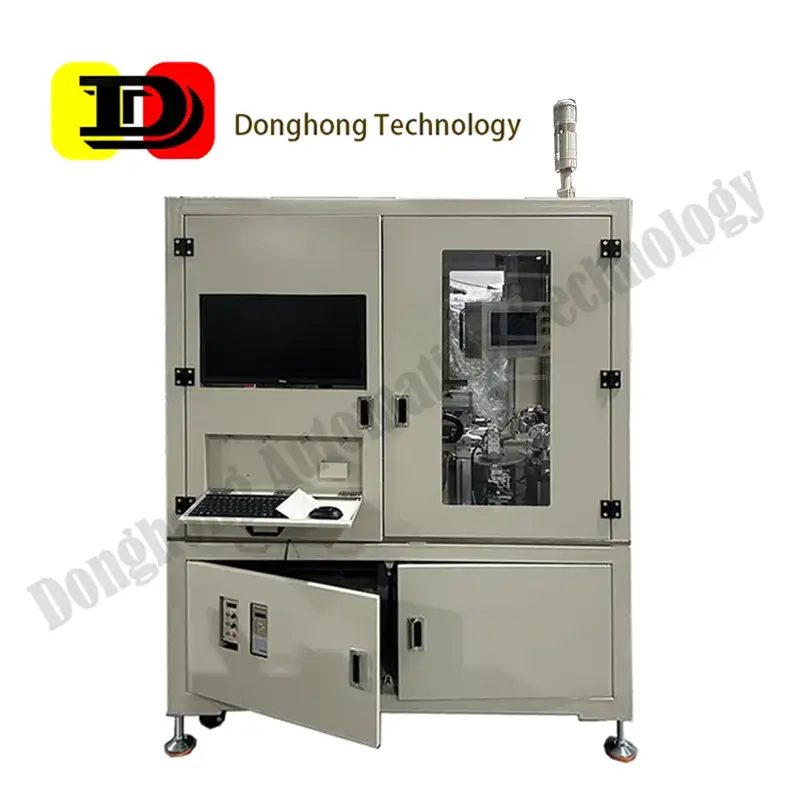

Automatic Terminal Common Mode Inductor Tinning And Baking Machine

Product Process Introduction

● Automatic Terminal Common Mode Inductor Tinning And Baking Machine adops Automatic feeding by a high - precision aluminum vibrating plate, combined with a PLC fiber optic detection system, ensures orderly feeding of magnetic cores with a feeding yield rate of ≥99.5%. The precise design of the vibrating plate eliminates material reversal and jamming.

● Automatic Terminal Common Mode Inductor Tinning And Baking Machine Can Laser precisely strips the paint. A high - power laser precisely removes the insulating layer of wires with a diameter of 0.04 - 0.08MM. The paint stripping depth is controlled within ±0.005mm, and the edge burrs are ≤0.01mm, without damaging the base material.

● AI intelligent vision locates and dips tin. It scans the solder joint positions in real - time and drives a piezoelectric tin dipping valve to achieve tin dipping accuracy of ±0.01g. The consistency of tin point shapes is ≥98%, suitable for ultra - small pads of 0.1mm².

● CCD visual inspection. Two CCD cameras simultaneously determine the integrity of paint stripping and the tin dipping status, automatically identifying defects such as incomplete paint stripping and insufficient tin dipping. The process yield rate is ≥99.7%.

● Automatic Terminal Common Mode Inductor Tinning And Baking Machine is divided into preheating zone, constant temperature zone, and cooling zone. The temperature difference is ≤5℃. Tin points are cured under a nitrogen - protected atmosphere, with a baking uniformity of ≥98%.

● Automatic unloading and palletizing. Finished products are neatly stored through intelligent palletizing, and the entire process requires no manual intervention.

Pre - sales and After - sales Services

Pre - sales:

● A professional technical team provides equipment selection consultation and customizes process parameters according to customer products (models 3225/4532, wire diameter 0.04 - 0.08MM).

● Developed models are available, and customers can conduct free sample testing in the open laboratory.

● Provide intelligent production line upgrade solutions and assist in connecting to the MES system to achieve digital management of the entire process from order to delivery.

After - sales:

● Three major technical service centers nationwide respond to on - site maintenance requests within 48 hours, and regular spare parts are delivered within 24 hours.

● Regular on - site inspections of equipment are carried out quarterly, with free control software upgrades and optimization of production parameters to continuously enhance equipment efficiency.

● Establish a dedicated customer database to track the equipment operation status in real - time, provide early warnings for potential failures, and reduce downtime losses.
