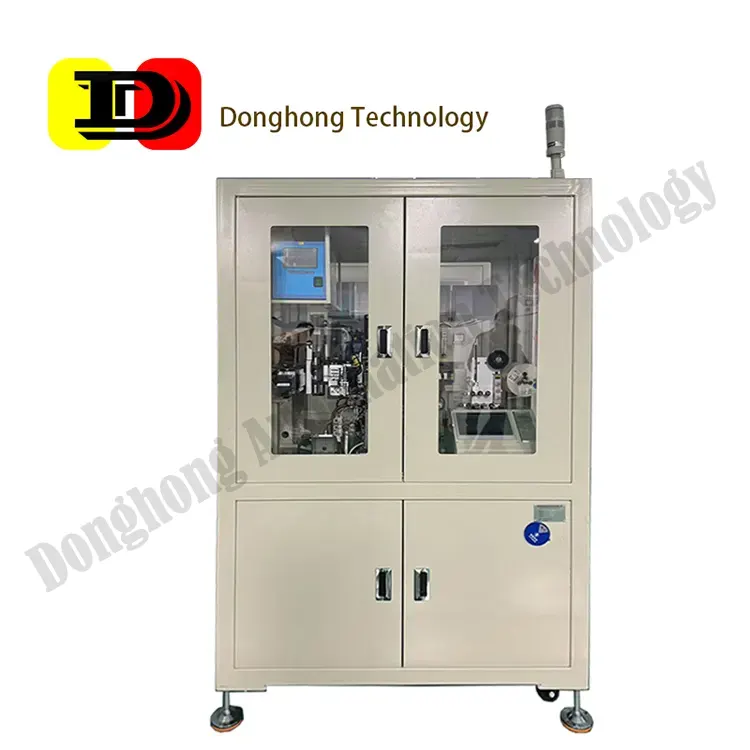

Automatic T-CORE Inductor Flat Wire Winding Machine

Product Process

1. High-precision aluminum vibrating plate is matched with PLC fiber detection system to realize orderly feeding of magnetic cores, with a feeding yield rate ≥99.5%, eliminating material reversal and jamming;

2. Automatic T-CORE Inductor Flat Wire Winding Machine adopts the original Alpha winding algorithm to carry out precise wire arrangement for 0.07-0.3MM flat wires, and the winding tension fluctuation is controlled within ±5gf to ensure uniform and tight coils;

3. Pneumatic wire clamping device is used to fix the wire precisely, and high-speed scissors realize flat cut without burrs, with the wire cutting length error <0.1mm;

4. The bending mechanism is driven by a servo motor with an angle accuracy of ±0.5°; the precise spot welding structure adopts dual closed-loop control of temperature and pressure, the welding temperature fluctuation ≤±3℃, the pressure error <±0.5kgf, and the solder joint strength ≥5N;

5. After welding, the excess wire is automatically cut off, and the finished products are orderly collected by the conveyor belt, with the whole process cycle ≤8 seconds.

Performance

1. The production capacity of a single device reaches 4,500 PCS/H, and the efficiency is increased by 300% compared with traditional equipment;

2. The fully automated process is equipped with an automatic alarm system for abnormalities, the continuous operation time of the equipment ≥24 hours, and the failure rate <1.5%.

3. Automatic T-CORE Inductor Flat Wire Winding Machine supports the winding of 0.07-0.3MM flat wires, and the wire arrangement spacing error ≤±0.02mm, which is suitable for the needs of ultra-narrow coils;

4. The welding temperature is monitored and feedback-adjusted in real time, the consistency of the solder joint pull-out force ≥98%, and the virtual soldering rate <0.3%;

5. The hot air temperature is precisely controlled within the range of ±5℃ to accelerate the post-welding curing and improve the production efficiency.

6. The bus controller realizes multi-axis collaborative control, and the response speed <1ms;

7. Automatic T-CORE Inductor Flat Wire Winding Machine supports seamless docking with the MES system, uploads more than 30 production data such as winding tension and welding temperature in real time, and supports remote process debugging and fault warning.
