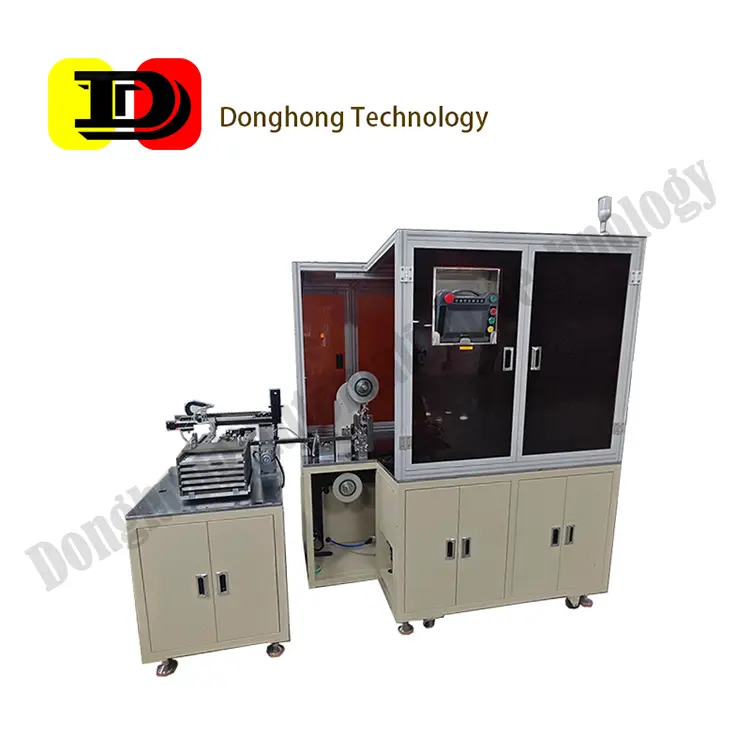

With its precise tape peeling system, bending module that requires no model change, and one-click switching function for the spraying process, Tape Stripping And Bending All-in-One Machine For Molded Inductors provides a one-stop production system featuring high compatibility, ultra-stability and intelligent linkage for high-end inductor manufacturing.
Product Process
Automatic feeding → Tape peeling → Cutting, bending and feeding → Tray loading
Performance Features
● Tape Stripping And Bending All-in-One Machine For Molded Inductors closed-loop process of "tape peeling → spraying switching → bending and shaping" saves 2 pieces of equipment and 30% of the floor space.
● Tape Stripping And Bending All-in-One Machine For Molded Inductors has preset storage for 1 to 20 product models, enabling seamless switching for products with a thickness of 2.0 to 5.0 mm. Bending height adjustment can be done with fine-tuning, eliminating the need to change parts.
● The success rate of tape grabbing is ≥99.9%. Waste tape is collected independently, completely preventing contamination.
● One-click switching between spraying and non-spraying modes. Japanese spray guns ensure that the paint error is less than 1 gram.
● Visual adjustment of the mold ensures bending dimensional stability of ±0.02 mm.
● Tape Stripping And Bending All-in-One Machine For Molded Inductors supports manual or automatic tray loading (customized) with zero damage to PIN pins.
● The electrical, pneumatic and mechanical modules are independent, and maintenance can be completed in less than 5 minutes.
Product parameters
| Serial Number | Parameter Item | Specification |
| 1 | Production Capacity | ≥8000PCS/H |
| 2 | Yield Rate | ≥99% |
| 3 | Operation Rate | 98% |
| 4 | Power Supply | AC220V 50HZ |
| 5 | Rated Power | 2KW |
| 6 | Air Pressure Range | 0.4 - 0.6Mpa |
| 7 | Machine Dimensions | 1500MM*950MM*1400MM |
| 8 | Machine Weight | 150KG |
