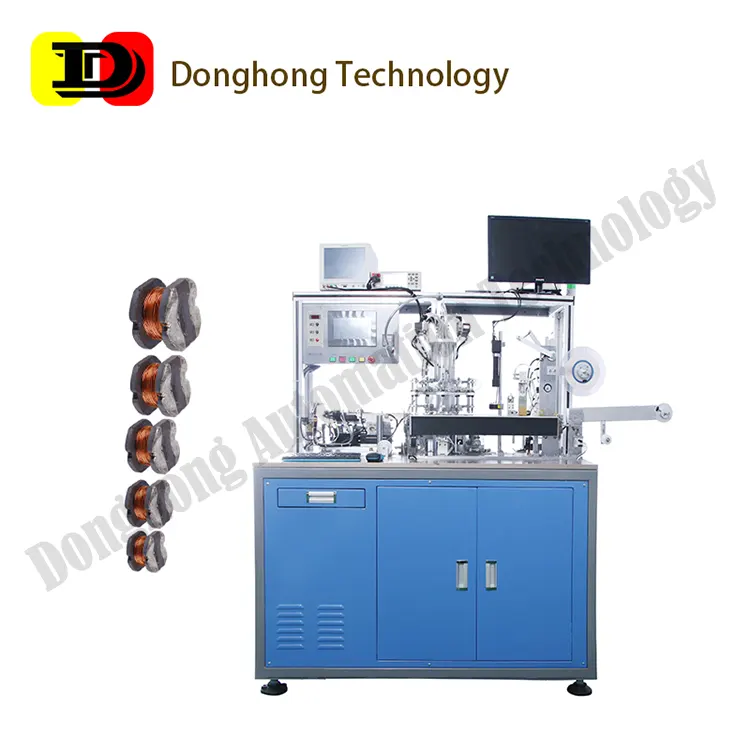

Automatic CD Inductor Testing And Packaging Machine

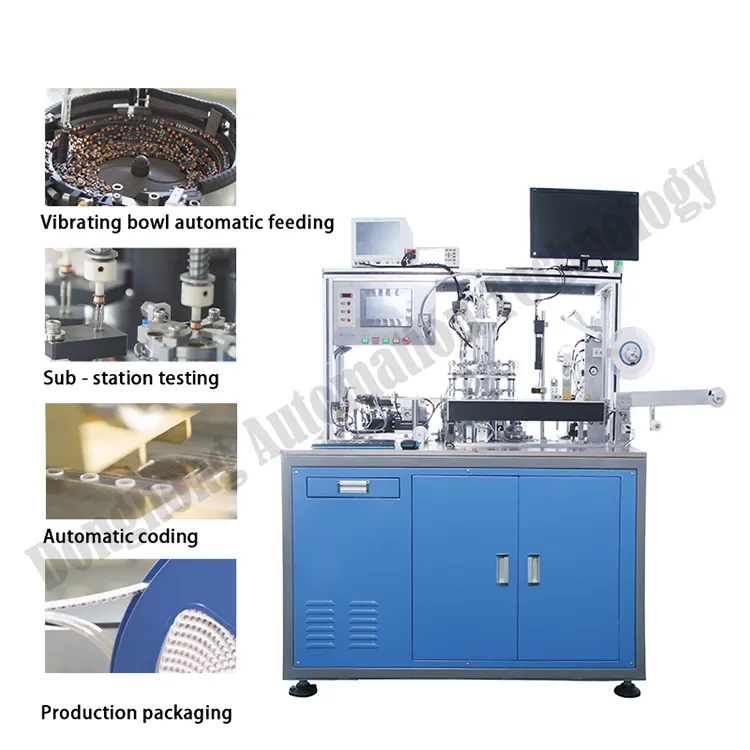

Automatic CD Inductor Testing And Packaging Machine integrates fully automated functions for inductor feeding, performance testing, quality sorting, and counting & packaging. Operators simply need to place batches of CD inductors into the feed bin, and the machine automatically completes the orderly conveying and precise positioning of inductors via a high-speed vibrating tray and precision conveyor belt. The testing process employs multi-parameter synchronous detection technology, while the packaging process is coordinated by intelligent robotic arms and an automatic packaging system, requiring no manual intervention throughout the entire workflow.

Performance and Features

1. Automatic CD Inductor Testing And Packaging Machine achieves end-to-end automation for feeding, testing, sorting, and packaging, enabling unmanned production.

2.With a modular architecture, Automatic CD Inductor Testing And Packaging Machine simplifies maintenance processes, reducing downtime by 50%.

3.An AI vision self-learning module detects surface defects (cracks, oxidation, etc.) with ±0.01mm accuracy.

4.Automatically verifies material integrity before tape packaging, self-feeds materials, and prevents missing components or defective products from flowing into the next stage.

5.Supports parallel detection of multiple processes for a single product line to enhance efficiency.

6.A proprietary database system real-time collects test data, visual images, and process parameters.

7.Automatically generates visual analysis reports to accurately locate the root causes of defects.

8.Vacuum damping, a floor-standing structure with vacuum adsorption, reduces vibration by 70% to ensure testing accuracy.

9.High-precision hardened aluminum pallets undergo precision hardening, extending their lifespan by 3 times and adapting to high-frequency production scenarios.

Highlights

1.Full electrical and visual inspection with a false rejection rate <0.1%, automatically classifying and removing defective products.

2.Supports military standards (such as 3000V AC withstand voltage testing) to meet automotive-grade requirements.

20 sets of model presets enable rapid model switching for small-batch/multi-variety orders within 1 hour.

3.Compatible with third-party testers (LCR meters, withstand voltage testers) and coders, allowing integration without modification.

4.MES/ERP system integration for cloud-based production data monitoring and remote control.

5.Expandable AI deep learning modules to continuously optimize detection algorithms.

6.With a production capacity of up to 18,000 PCS/H, one operator can manage 6 machines, reducing labor costs by 85% and increasing production capacity by 400%.

7.Material waste is reduced by 20%, and annual maintenance costs are cut by 30%.

Product parameters
