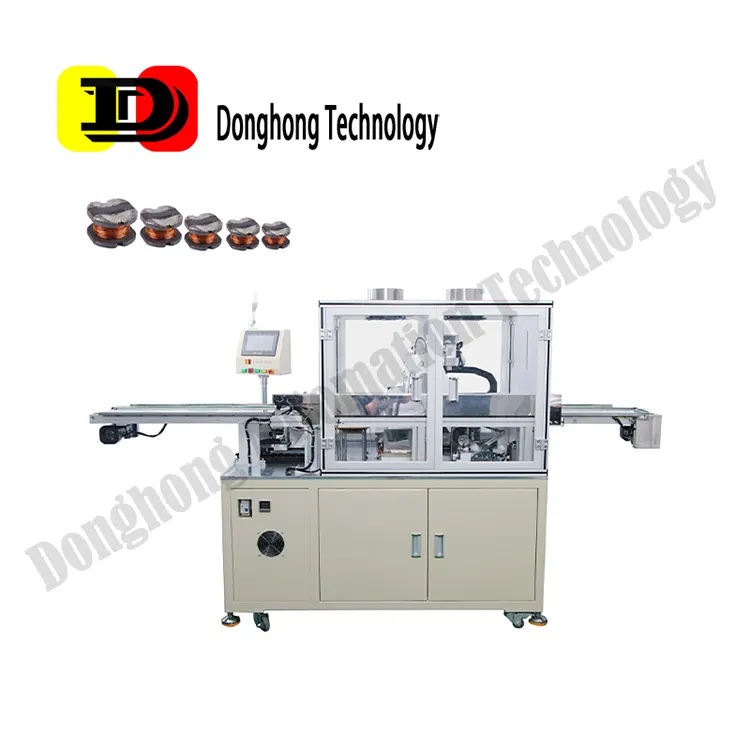

Dongguan Donghong Automation Technology Co., Ltd. welcomes new and old customers to cooperate, promises the best after-sales service and timely delivery, and looks forward to creating a better future together. Automatic CD Inductor Soldering Machine is the first choice for customers seeking reliable soldering equipment.
Performance and Features

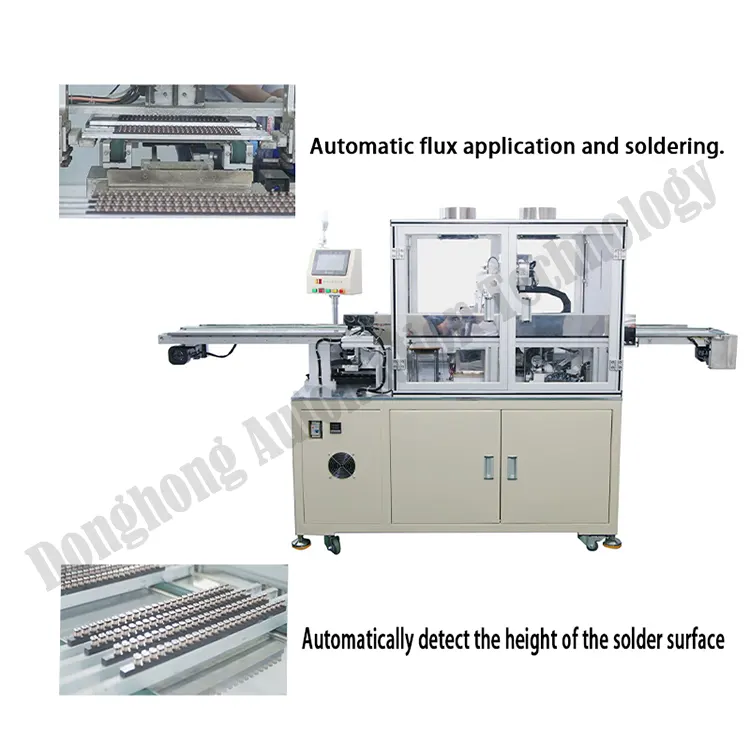

● Automatic CD Inductor Soldering Machine is fully automated, integrating fully automated processes of loading, soldering, and inspection to achieve unmanned production.
● Modular structural design facilitates maintenance, reducing downtime by 60%.
● Automatic CD Inductor Soldering Machine has high compatibility, supporting 1-20 sets of model presets for one-click switching, and is compatible with all CD series inductors.
● Flexible soldering fixture configurations (1-4 lines) adapt to small-batch or mass production.
● Independent modules ensure uniform solder pot temperature (temperature difference ≤3°C), eliminating cold soldering/insufficient soldering defects.

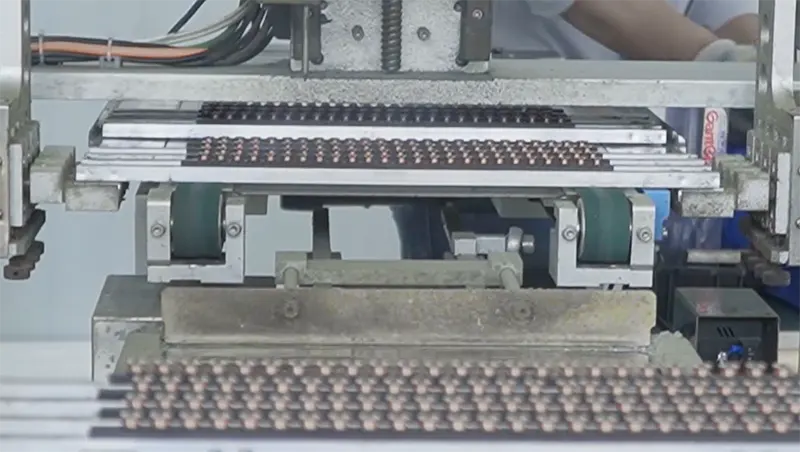

● Automatic solder/flux feeding function (optional), with intelligent dispensing systems precisely controlling material usage to minimize waste.
● Error-proof system automatically locks and alarms for misoperations to prevent human errors.
● Independent heating rod monitoring: real-time detection of anomalies and alarms to avoid equipment damage.
● Solder joint smoothness reaches the micron level, with consistency meeting military standards (IPC-A-610G).
Highlights
● Industry-leading production capacity (40,000 PCS/H), 200% faster than traditional equipment.
● One operator can manage 4 machines, reducing labor costs by 75%.
● Proprietary multi-zone algorithm ensures temperature fluctuation ≤3°C for stable soldering quality.
● Intelligent PID adjustment adapts to different solder joint sizes and materials.
● MES system enables real-time monitoring of production data and equipment status.
● Process parameters are stored in the cloud, allowing instant retrieval of historical optimal settings.
● Solder dross is reduced by 30%, and flux usage is precisely controlled.
● Customized high-temperature-resistant modules extend service life by 50%, reducing annual maintenance costs by 40%.
Product parameters
| Serial Number | Parameter Item | Specification |
| 1 | Production Capacity | ≥40000PCS/H |
| 2 | Yield Rate | ≥99% |
| 3 | Operation Rate | 98% |
| 5 | Power Supply | AC220V 50HZ |
| 6 | Rated Power | 3KW |
| 7 | Air Pressure Range | 0.4 - 0.6Mpa |
| 8 | Machine Dimensions | 1600MM*900MM*1750MM |
| 9 | Machine Weight | 350KG |
